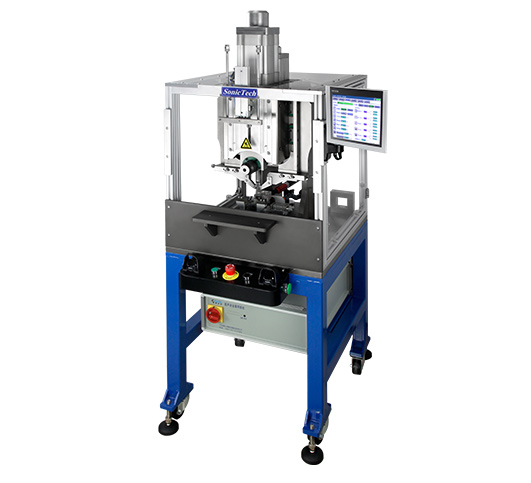

Power capacity: 7KW/10KW/13KW
Working frequency: 20KHZ
Input voltage: 380V ?/50HZ, three-phase
External air source: min0.65MPa
Rack options:
CX-20WD-7 welding range: copper wire: 10mm2~50mm2 aluminum wire: 20mm2~70mm2
CX-20WD-10 Welding range: Copper wire: 16mm2~70mm2 Aluminum wire: 35mm2~100mm2
CX-20WD-13 welding range: copper wire: 20mm2~120mm2 aluminum wire: 35mm2~150mm2

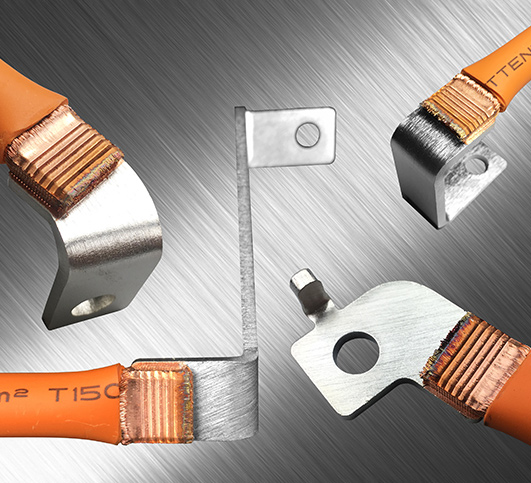

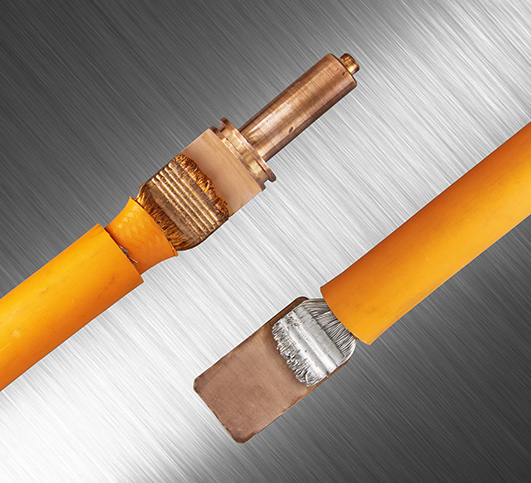

Model features: ① Copper/aluminum wire and copper/aluminum terminal welding; ② Horizontal tensile force CPK value>1.67; ③ Meet the requirements of SAE USCAR38-1; ④ Accessible to MES system; ⑤ Terminals can be soldered at 90 or 180 degrees.
Patent product: Ultrasonic longitudinal bending welding structure, dual working faces, with a lifespan twice that of similar foreign products; The welding head has superior void avoidance characteristics and is suitable for various structurally complex workpieces. The positioning fixture design is simple and easy to replace.

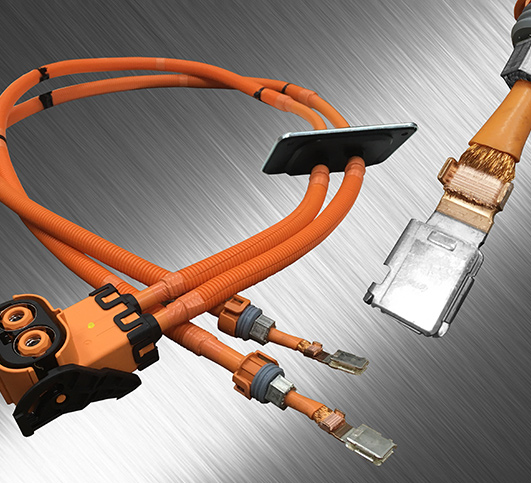

Application scope: Processing of automotive connector wire harnesses, welding of high-voltage connecting wires, etc
