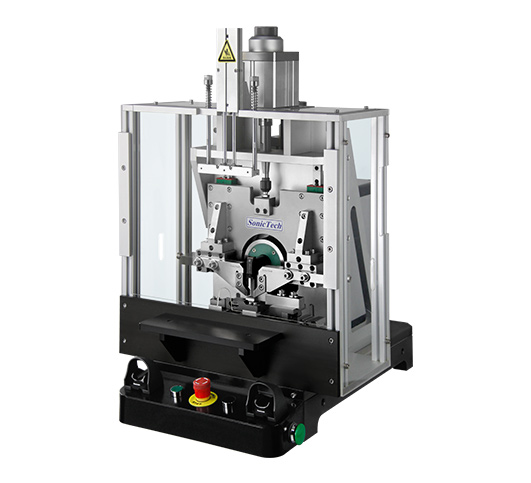

Power capacity: 5KW/7KW/9KW
Working frequency: 20KHZ
Input voltage: 380V ?/50HZ, three-phase
External air source: min0.65MPa
Rack options:
CX-20DZ-5 Welding range: Copper wire: 4mm2~30mm2 Aluminum wire: 10mm2~50mm2
CX-20DZ-7 Welding range: Copper wire: 6mm2~50mm2 Aluminum wire: 10mm2~80mm2
CX-20DZ-9 Welding range: Copper wire: 10mm2~70mm2 Aluminum wire: 20mm2~100mm2

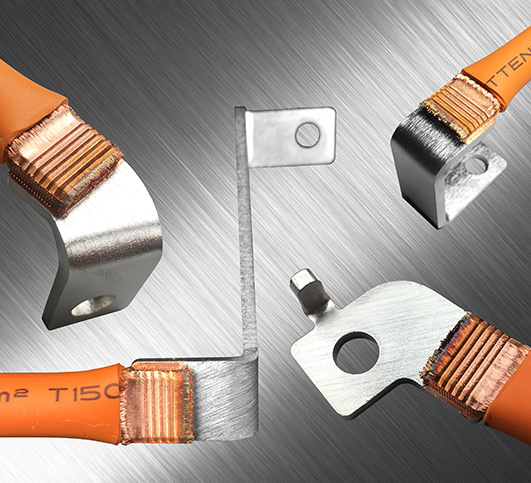

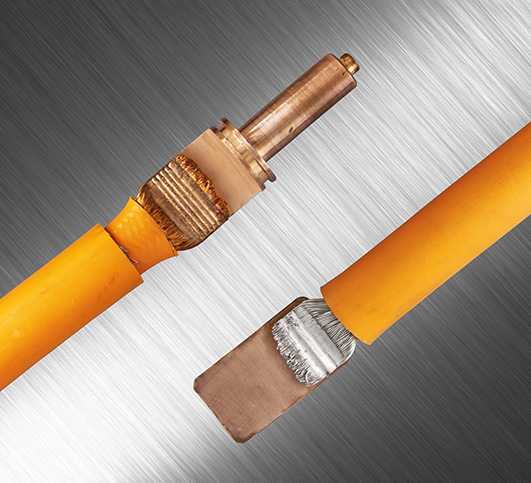

Model features: ① Copper/aluminum wire and copper/aluminum terminal welding; ② Horizontal tensile force CPK value>1.67; ③ Meet the requirements of SAE USCAR38-1; ④ Accessible to MES system; ⑤ Terminals can be welded at 90 or 180 degrees;

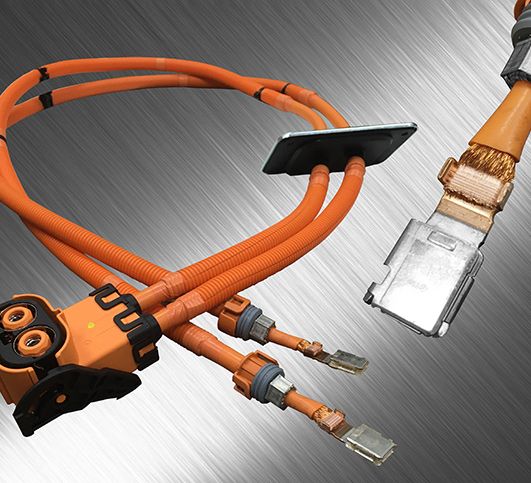

Application scope: Processing of automotive connector wire harnesses, welding of high-voltage connecting wires, etc
